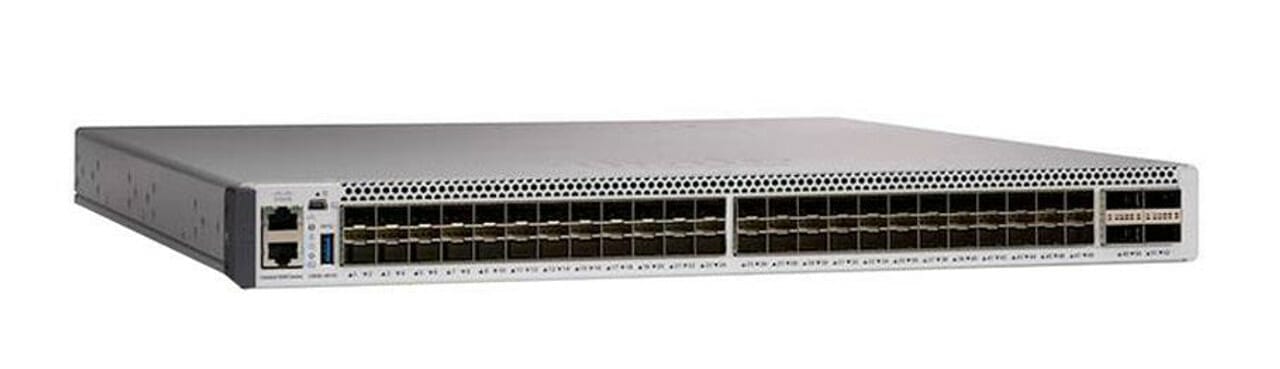

About the C9500-48Y4C-A
With 48 SFP28 ports at 1G, 10G or 25G and four built-in 40G/100G QSFP28 uplinks, the C9500-48Y4C-A packs its ports into 1U. It switches up to 3.2 Tbps, forwards up to 1 Bpps and runs Cisco IOS XE with the Network Advantage software tier. The C9500-48Y4C-E is the same switch with Network Essentials.
Tables scale with the selected ASIC template: up to 82,000 MAC addresses, up to 256,000 IPv4 routes and up to 90,000 host/ARP entries. There is 16 GB each of DRAM and flash, and a pluggable SSD slot for 240 GB, 480 GB or 960 GB of storage.
It has no stacking ports and no PoE. Cisco StackWise Virtual joins two switches as one over data ports. The power is dual 1+1 redundant, with one power supply in the box.
What’s included
- C9500-48Y4C-A switch with 48 SFP28 ports, four QSFP28 uplinks and the Network Advantage software tier
- One power supply
Sold separately
- A second power supply for 1+1 redundancy: C9K-PWR-650WAC-R, C9K-PWR-650WACL-R (AC) or C9K-PWR-930WDC-R (DC)
- Pluggable SSD storage, 240 GB, 480 GB or 960 GB; see Compatible parts below
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
C9500-48Y4C-A specifications
| Downlink ports | 48× 1G/10G/25G SFP28 |
|---|---|
| Uplink ports | 4× 40G/100G QSFP28 (fixed) |
| PoE budget | None (no PoE) |
| Stacking | No stacking ports; Cisco StackWise Virtual (two switches joined as one over data ports) |
| Switching capacity | Up to 3.2 Tbps |
| Forwarding rate | Up to 1 Bpps |
| Power supply | Dual 1+1 redundant, one included; options: C9K-PWR-650WAC-R, C9K-PWR-650WACL-R, C9K-PWR-930WDC-R |
| Form factor | 1U rack-mount; 1.73 × 17.5 × 18.0 in. (4.39 × 44.45 × 45.72 cm) |
| Management | Cisco IOS XE (CLI, WebUI) |
| Feature tier | Network Advantage |
Full specifications (5)
Scale
| MAC addresses | Up to 82,000 (varies with the selected ASIC template) |
|---|---|
| IPv4 routes | Up to 256,000 (indirect + direct); up to 90,000 host/ARP (varies with the selected ASIC template) |
| IPv6 routes | Up to 256,000 (indirect + direct); up to 90,000 host (varies with the selected ASIC template) |
| VLAN IDs | 4,094 |
| DRAM / flash | 16 GB / 16 GB |
Other versions of this model
- C9500-48Y4C-E Network Essentials$12,950.25 · In stock
Compare Catalyst 9500 models
Swipe the table sideways to see every column.
| Model | Ports | Uplinks | Price |
|---|---|---|---|
| C9500-48Y4C-A this page | 48× 1G/10G/25G SFP28 | 4× 40G/100G QSFP28 | $12,500.00 · In stock |
| C9500-16X-A | 16× 1G/10G SFP/SFP+ | Optional network module: 8× 1G/10G SFP+ (C9500-NM-8X) or 2× 40G QSFP+ (C9500-NM-2Q) | $7,025.99 · In stock |
| C9500-24Y4C-A | 24× 1G/10G/25G SFP28 | 4× 40G/100G QSFP28 | $9,747.61 · In stock |
| C9500-32C-A | 32× 40G/100G QSFP28 | None separate: all 32 ports are 40G/100G QSFP28 | $21,542.16 |
| C9500-32QC-A | 32× 40G QSFP+ | None separate: all 32 ports are 40G QSFP+ (16 can run 100G) | $19,883.08 |
Compatible parts
| Power supplies | ||
|---|---|---|
| C9K-PWR-650WAC-R | 650 W AC power supply, 20 ms hold-up | $1,375.00 · In stock |
| C9K-PWR-650WACL-R | 650 W AC power supply, 12 ms hold-up | $1,060.58 |
| C9K-PWR-930WDC-R | 930 W DC power supply | $1,061.31 |
| Fans | ||
| C9K-T1-FANTRAY | Fan tray, up to 4 fans | Ask for a quote |
| Rack mount kits | ||
| C9500-4PTH-KIT | Extension rails and brackets for four-point mounting | $25.27 |
| C9500-ACCKITH-19I | 19-inch rack mount accessory kit | $25.27 |
| C9500-ACCKITH-23I | 23-inch rack mount accessory kit | $25.27 |
| Storage | ||
| C9K-F1-SSD-240G | 240 GB pluggable SSD storage | $1,936.66 |
| C9K-F1-SSD-480G | 480 GB pluggable SSD storage | $2,646.77 |
| C9K-F1-SSD-960G | 960 GB pluggable SSD storage | $4,841.66 |
Common questions
C9500-48Y4C-A or C9500-48Y4C-E?
Same hardware and ports. The C9500-48Y4C-A runs Network Advantage; the C9500-48Y4C-E runs Network Essentials.
Do the QSFP28 uplinks run at 40G?
Yes. All four run at 40G or 100G.
Which power supplies fit the C9500-48Y4C-A?
The C9K-PWR-650WAC-R and C9K-PWR-650WACL-R (650 W AC) and the C9K-PWR-930WDC-R (930 W DC). Two power supplies give 1+1 redundancy.
