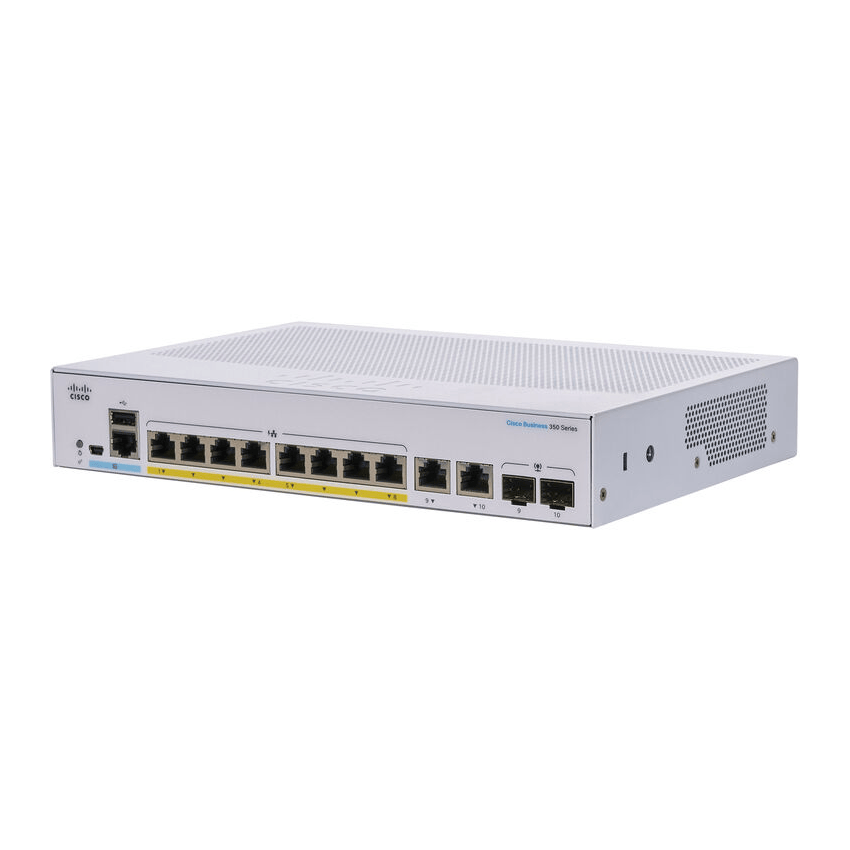

Cisco CBS350-8FP-2G – Switch – L3 – managed – 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP – rack-mountable – PoE+ (120 W)

The Cisco CBS350-8FP-2G is a compact and powerful Ethernet switch designed to provide reliable and efficient network connectivity for small to medium-sized businesses. With eight Fast Ethernet ports and two Gigabit Ethernet uplink ports, the switch offers a versatile and scalable solution for connecting your network devices.

One of the key features of the CBS350-8FP-2G is its support for Power over Ethernet (PoE) technology. It provides eight Fast Ethernet ports with PoE capability, allowing you to power compatible devices such as IP phones, wireless access points, and IP cameras directly from the switch. This eliminates the need for separate power supplies and simplifies the installation and management of your network infrastructure.

The switch also includes two Gigabit Ethernet uplink ports, providing high-speed connectivity for connecting the switch to other switches, routers, or network devices. These uplink ports offer increased bandwidth and ensure fast and efficient data transfer between network segments.

The CBS350-8FP-2G offers a user-friendly web-based management interface for easy configuration and monitoring of network settings. It also provides a range of security features, including Access Control Lists (ACLs) and port security, to protect your network from unauthorized access and maintain data integrity.

The switch is designed for easy installation and integration into your existing network infrastructure. Its compact form factor and fanless design allow for flexible deployment options, whether it’s placed on a desktop or mounted on a wall. Additionally, its energy-efficient operation helps reduce power consumption and lowers operating costs.

In summary, the Cisco CBS350-8FP-2G switch delivers reliable and efficient network connectivity, with support for PoE, advanced switching features, and robust security capabilities. It is an ideal solution for small to medium-sized businesses seeking a compact and versatile switch to enhance their network infrastructure.

• Primary Information

  Product Description:	Cisco Business 350 Series 350-8FP-2G – switch – 8 ports – managed – rack-mountable
  Device Type:	Switch – 8 ports – L3 – managed
  Enclosure Type:	Rack-mountable
  Subtype:	Gigabit Ethernet
  Ports:	8 x 10/100/1000 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	120 W
  Performance:	Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
  Capacity:	Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 1.5 MB
  MAC Address Table Size:	16K entries
  Jumbo Frame Support:	2KB
  Routing Protocol:	IGMP, policy-based routing (PBR), CIDR
  Remote Management Protocol:	SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP
  Features:	DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID)
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
  Power:	AC 120/230 V (50/60 Hz)
  Dimensions (WxDxH):	10.6 in x 12.7 in x 1.7 in
  Weight:	7.72 lbs

• General

  Device Type:	Switch – 8 ports – L3 – managed
  Enclosure Type:	Rack-mountable
  Subtype:	Gigabit Ethernet
  Ports:	8 x 10/100/1000 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	120 W
  Performance:	Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
  Capacity:	Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 1.5 MB
  MAC Address Table Size:	16K entries
  Jumbo Frame Support:	2KB
  Routing Protocol:	IGMP, policy-based routing (PBR), CIDR
  Remote Management Protocol:	SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP
  Encryption Algorithm:	SSL
  Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+
  Features:	DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID)
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
  Processor:	X ARM: 800 MHz
  RAM:	512 MB
  Flash Memory:	256 MB
  Status Indicators:	Status, link/activity

• Expansion / Connectivity

  Interfaces:

  8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN RJ-45/SFP ¦ 1 x console (USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45

• Power

  Power Device:	Internal power supply
  Voltage Required:	AC 120/230 V (50/60 Hz)

• Miscellaneous

  Rack Mounting Kit:	Included
  MTBF:	1,786,412 hours
  Compliant Standards:	UL 60950, CSA C22.2, FCC CFR47, USGv6

• Dimensions & Weight

  Width:	10.6 in
  Depth:	12.7 in
  Height:	1.7 in
  Weight:	7.72 lbs
