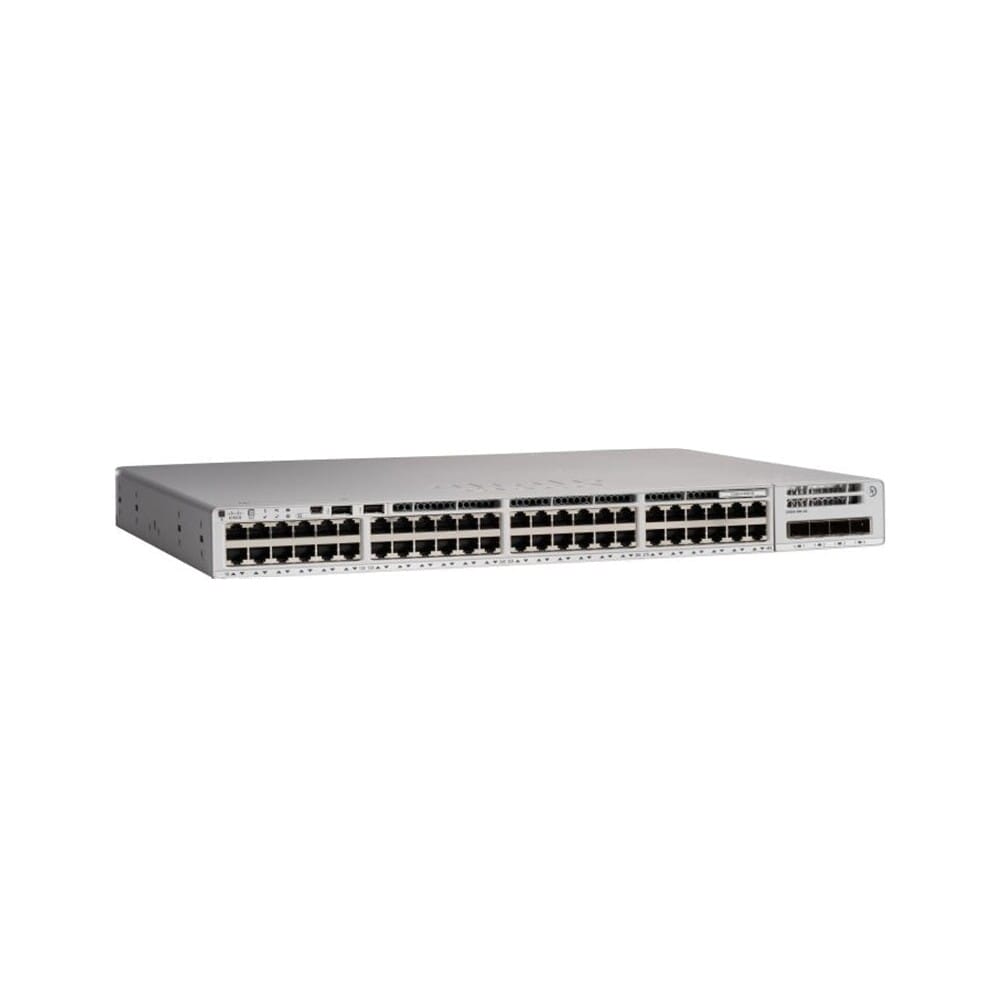

The Cisco C9200-48PXG-E is a high-performance, modular switch designed for enterprise-grade networking.
With 40 PoE+ Gigabit Ethernet ports and eight multi-gigabit Ethernet uplinks, it delivers exceptional performance and scalability. This switch offers advanced security features, resiliency, and simplified management, making it ideal for campus and branch office deployments. The Catalyst 9200 series delivers the superior features. It’s highly secure and always on, and it provides IT simplicity, resulting in a great experience every time.
- Primary Information Cisco Excess
Product Description: Cisco Catalyst 9200 – Network Essentials – switch – 48 ports – smart – rack-mountable Device Type: Switch – 48 ports – L3 – smart – stackable Enclosure Type: Rack-mountable Subtype: Gigabit Ethernet Ports: 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G/10GBase-T Power Over Ethernet (PoE): PoE+ PoE Budget: 740 W Performance: Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 400 Gbps ¦ Switching capacity with stacking: 580 Gbps ¦ Forwarding rate: 297.61 Mpps ¦ Forwarding rate with stacking: 431 Mpps Capacity: QoS scale entries: 1000 ¦ ACL scale entries: 1600 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Flexible NetFlow entries: 16000 MAC Address Table Size: 32000 entries Jumbo Frame Support: 9198 bytes Routing Protocol: OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF Features: ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, Cisco StackWise-160 technology, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz Power: AC 100-240 V (50 – 60 Hz) Power Redundancy: Optional Dimensions (WxDxH): 17.5 in x 15.4 in x 1.7 in Weight: 11.99 lbs - General
Device Type: Switch – 48 ports – L3 – smart – stackable Enclosure Type: Rack-mountable Subtype: Gigabit Ethernet Ports: 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G/10GBase-T Power Over Ethernet (PoE): PoE+ PoE Budget: 740 W Performance: Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 400 Gbps ¦ Switching capacity with stacking: 580 Gbps ¦ Forwarding rate: 297.61 Mpps ¦ Forwarding rate with stacking: 431 Mpps Capacity: QoS scale entries: 1000 ¦ ACL scale entries: 1600 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Flexible NetFlow entries: 16000 MAC Address Table Size: 32000 entries Jumbo Frame Support: 9198 bytes Routing Protocol: OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF Encryption Algorithm: 128-bit AES Features: ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, Cisco StackWise-160 technology, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz RAM: 4 GB Flash Memory: 4 GB Built-in Devices: RFID tag - Expansion / Connectivity
Interfaces: 40 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W ¦ 8 x 100/1000/2.5G/5G/10GBase-T RJ-45 ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45 ¦ 1 x network stack device Expansion Slots: 1 (total) / 1 (free) x expansion slot - Power
Power Device: Internal power supply – hot-plug Max Supported Qty: 2 Power Redundancy: Optional Power Provided: 1000 Watt Voltage Required: AC 100-240 V (50 – 60 Hz) - Miscellaneous
MTBF: 320,440 hours Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 - Dimensions & Weight
Width: 17.5 in Depth: 15.4 in Height: 1.7 in Weight: 11.99 lbs
