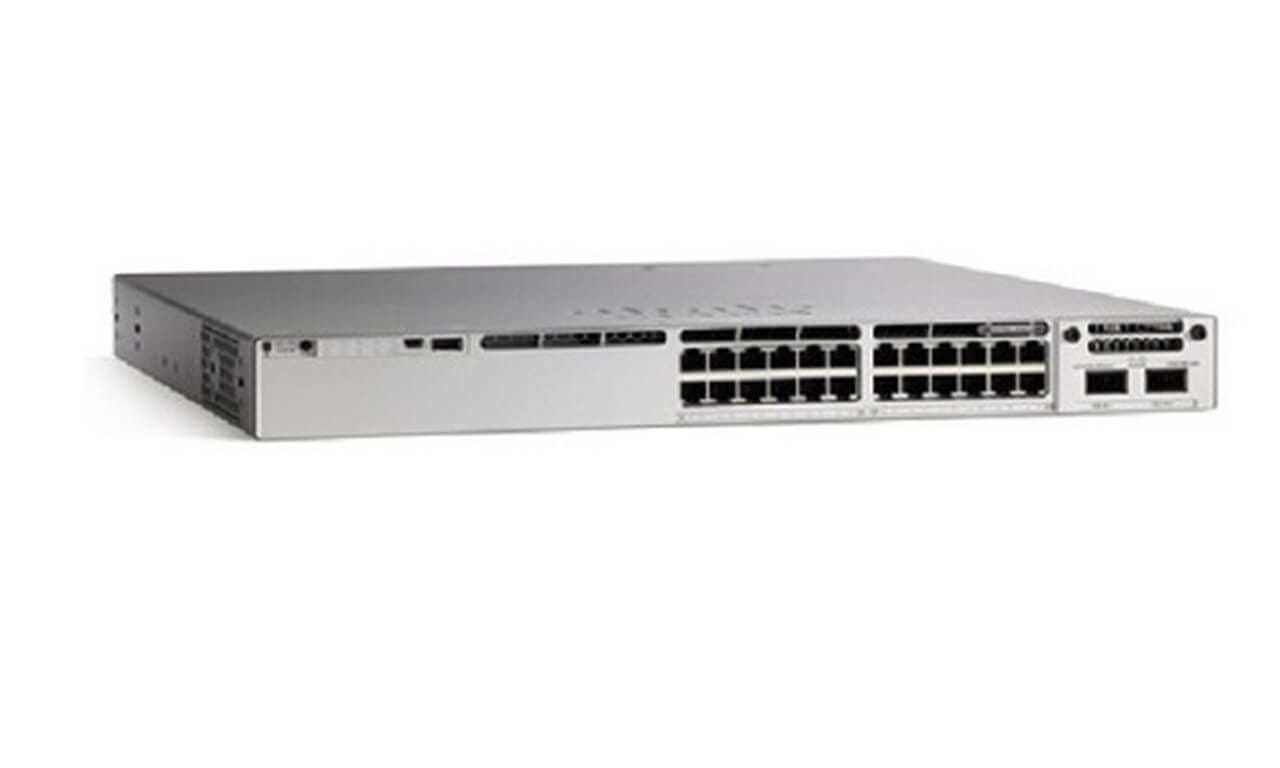

Cisco C9300L-24P-4G-E-WS Catalyst 9300L Switch – 24x 1G PoE+, 4x 1G SFP, Certified Refurbished

About the C9300L-24P-4G-E-WS

The C9300L-24P-4G-E-WS is the Certified Refurbished version of the C9300L-24P-4G-E: 24 PoE+ ports, four fixed 1G SFP uplinks and the Network Essentials software tier on Cisco IOS XE.

Its 715 W supply gives a 505 W PoE budget, and two power supplies give up to 720 W. Switching capacity is 56 Gbps. With the optional stack kit it stacks with other 9300L switches over StackWise-320 at 320 Gbps. For Network Advantage, the C9300L-24P-4G-A-WS is the same switch, Certified Refurbished.

What’s included

• C9300L-24P-4G-E-WS switch, Certified Refurbished, with the Network Essentials software tier
• 715 W AC power supply (PWR-C1-715WAC-P)

Sold separately

• SFP transceivers for the uplinks
• A stack kit (C9300L-STACK-KIT or C9300L-STACK-KIT2)

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

C9300L-24P-4G-E-WS specifications

Downlink ports	24× 10/100/1000 PoE+
Uplink ports	4× 1G SFP (fixed)
PoE budget	505 W with 1× PWR-C1-715WAC-P (default); up to 720 W with two power supplies
Stacking	StackWise-320, 320 Gbps with the optional stack kit; up to 8 members (stacks only with other 9300L / 9300LM)
Switching capacity	56 Gbps
Forwarding rate	41.66 Mpps
Power supply	715 W AC PWR-C1-715WAC-P included; second supply optional for redundancy/PoE
Form factor	1U rack-mount; 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm) (H × W × D) with default power supply
Management	Cisco IOS XE (CLI, WebUI)
Feature tier	Network Essentials
Weight	14.99 lb (6.81 kg)

Other versions of this model

• C9300L-24P-4G-A Network Advantage$3,250.00 · In stock
• C9300L-24P-4G-E Network Essentials$3,150.00 · In stock
• C9300L-24P-4G-A-WS Certified Refurbished$2,549.90

Compare Catalyst 9300L models

Swipe the table sideways to see every column.

Model	Ports	Uplinks	PoE budget	Price
C9300L-24P-4G-E same hardware, new	24× 10/100/1000 PoE+	4× 1G SFP	505 W	$3,150.00 · In stock
C9300L-24P-4X-E	24× 10/100/1000 PoE+	4× 10G/1G SFP+	505 W	$4,950.00 · In stock
C9300L-24T-4G-E	24× 10/100/1000, data only	4× 1G SFP	None	$3,500.00
C9300L-24T-4X-E	24× 10/100/1000, data only	4× 10G/1G SFP+	None	$3,450.00 · In stock
C9300L-48P-4G-E	48× 10/100/1000 PoE+	4× 1G SFP	505 W	$2,750.00 · In stock
C9300L-48P-4X-E	48× 10/100/1000 PoE+	4× 10G/1G SFP+	505 W	$2,950.00 · In stock
C9300L-48PF-4X-E	48× 10/100/1000 PoE+ (full PoE+ model)	4× 10G/1G SFP+	890 W	$6,150.00 · In stock
C9300L-48T-4G-E-WS	48× 10/100/1000, data only	4× 1G SFP	None	$2,165.88
C9300L-48T-4X-E	48× 10/100/1000, data only	4× 10G/1G SFP+	None	$4,682.22 · In stock
C9300L-48UXG-4X-E-WS	12× 100M/1G/2.5G/5G/10G multigigabit + 36× 10M/100M/1G, all UPOE	4× 10G/1G SFP+	675 W	$3,716.46
C9300L-24UXG-4X-E	8× 100M/1G/2.5G/5G/10G multigigabit + 16× 10M/100M/1G, all UPOE	4× 10G/1G SFP+	880 W	Ask for a quote
C9300L-48PF-4G-E	48× 10/100/1000 PoE+ (full PoE+ model)	4× 1G SFP	890 W	Ask for a quote
C9300L-48UXG-2Q-E	12× 100M/1G/2.5G/5G/10G multigigabit + 36× 10M/100M/1G, all UPOE	2× 40G QSFP	675 W	Ask for a quote

Compatible parts

Power supplies
PWR-C1-350WAC-P	350 W AC power supply	$334.24 · In stock
PWR-C1-715WAC-P	715 W AC power supply	$595.00 · In stock
PWR-C1-715WDC	715 W DC power supply	$375.00
PWR-C1-1100WAC-P	1100 W AC power supply	$650.00
PWR-C1-1900WAC-P	1900 W AC power supply	$1,314.00
Stack kits
C9300L-STACK-KIT	StackWise-320 stacking, 320 Gbps	$550.00 · In stock
C9300L-STACK-KIT2	StackWise-320 stacking, 320 Gbps	$659.53
Stack cables
STACK-T3-50CM	Data stack cable for the C9300L-STACK-KIT, 50 cm	Ask for a quote
STACK-T3A-50CM	Data stack cable for the C9300L-STACK-KIT2, 50 cm	Ask for a quote
STACK-T3-1M	Data stack cable for the C9300L-STACK-KIT, 1 m	$101.08
STACK-T3A-1M	Data stack cable for the C9300L-STACK-KIT2, 1 m	$101.08
STACK-T3-3M	Data stack cable for the C9300L-STACK-KIT, 3 m	$151.62
STACK-T3A-3M	Data stack cable for the C9300L-STACK-KIT2, 3 m	$151.62
Fans
FAN-T2=	Fan	Ask for a quote

Common questions

How much PoE does the C9300L-24P-4G-E-WS have?

505 W on the included 715 W supply, up to 720 W with a second supply.

Can I get it new?

Yes. The C9300L-24P-4G-E is the same switch, new.
