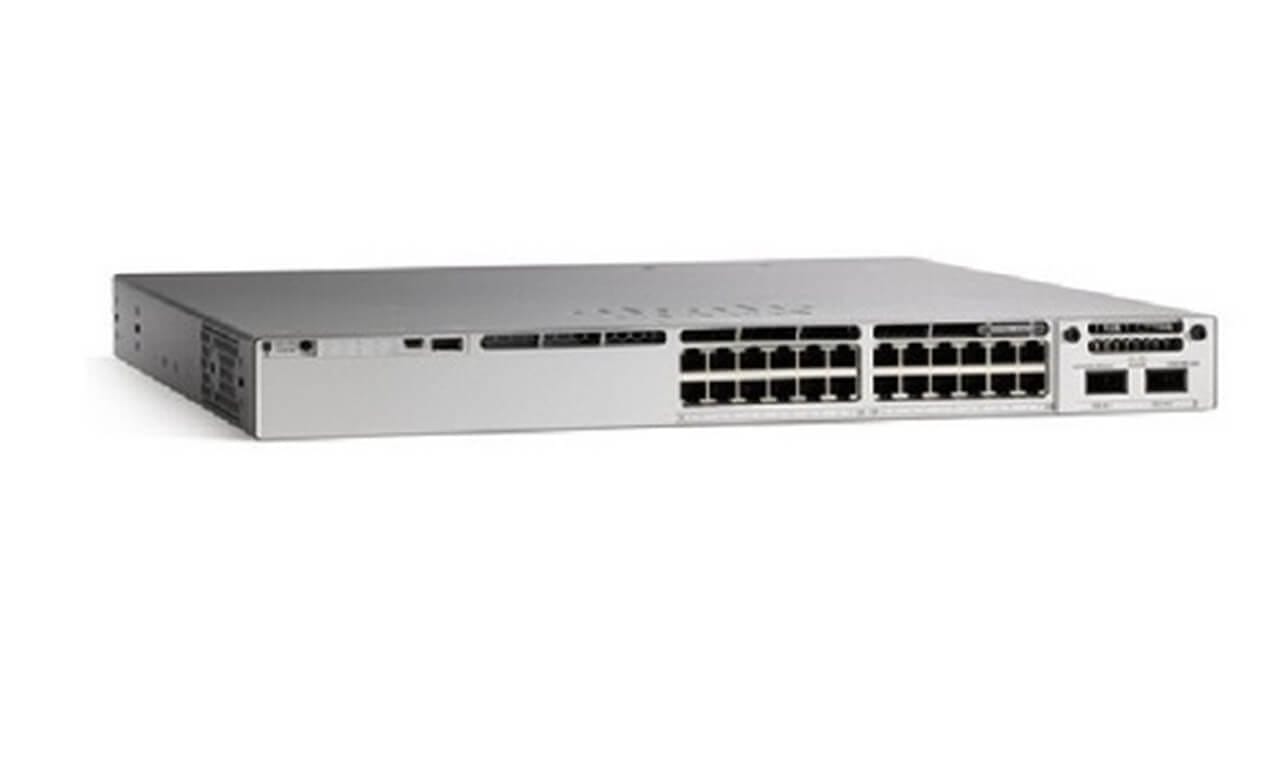

Cisco C9300L-24P-4G-A-WS Catalyst 9300L Switch – 24x 1G PoE+, 4x 1G SFP, Certified Refurbished

About the C9300L-24P-4G-A-WS

This is the Certified Refurbished C9300L-24P-4G-A-WS, the same hardware as the C9300L-24P-4G-A: 24 PoE+ copper ports, four fixed 1G SFP uplinks and the Network Advantage software tier on Cisco IOS XE, in 1U.

It comes with a 715 W supply for a 505 W PoE budget, rising to 720 W with a second supply. The uplinks are built in, so no network module is needed. Up to eight 9300L switches stack over StackWise-320 with the optional stack kit. The C9300L-24P-4G-E-WS is the Network Essentials version, also Certified Refurbished.

What’s included

• C9300L-24P-4G-A-WS switch, Certified Refurbished, with the Network Advantage software tier
• 715 W AC power supply (PWR-C1-715WAC-P)

Sold separately

• A second power supply for redundancy and up to 720 W of PoE
• The C9300L-STACK-KIT or C9300L-STACK-KIT2 to stack it

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

C9300L-24P-4G-A-WS specifications

Downlink ports	24× 10/100/1000 PoE+
Uplink ports	4× 1G SFP (fixed)
PoE budget	505 W with 1× PWR-C1-715WAC-P (default); up to 720 W with two power supplies
Stacking	StackWise-320, 320 Gbps with the optional stack kit; up to 8 members (stacks only with other 9300L / 9300LM)
Switching capacity	56 Gbps
Forwarding rate	41.66 Mpps
Power supply	715 W AC PWR-C1-715WAC-P included; second supply optional for redundancy/PoE
Form factor	1U rack-mount; 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm) (H × W × D) with default power supply
Management	Cisco IOS XE (CLI, WebUI)
Feature tier	Network Advantage
Weight	14.99 lb (6.81 kg)

Other versions of this model

• C9300L-24P-4G-A Network Advantage$3,250.00 · In stock
• C9300L-24P-4G-E Network Essentials$3,150.00 · In stock
• C9300L-24P-4G-E-WS Certified Refurbished$1,933.24

Compare Catalyst 9300L models

Swipe the table sideways to see every column.

Model	Ports	Uplinks	PoE budget	Price
C9300L-24P-4G-A same hardware, new	24× 10/100/1000 PoE+	4× 1G SFP	505 W	$3,250.00 · In stock
C9300L-24P-4X-A	24× 10/100/1000 PoE+	4× 10G/1G SFP+	505 W	$3,655.00
C9300L-24T-4G-A	24× 10/100/1000, data only	4× 1G SFP	None	$3,500.00
C9300L-24T-4X-A	24× 10/100/1000, data only	4× 10G/1G SFP+	None	$3,045.00
C9300L-48P-4G-A	48× 10/100/1000 PoE+	4× 1G SFP	505 W	$5,520.98 · In stock
C9300L-48P-4X-A	48× 10/100/1000 PoE+	4× 10G/1G SFP+	505 W	$6,955.00 · In stock
C9300L-48T-4G-A-WS	48× 10/100/1000, data only	4× 1G SFP	None	$2,236.54
C9300L-48T-4X-A	48× 10/100/1000, data only	4× 10G/1G SFP+	None	$6,437.82 · In stock
C9300L-24UXG-4X-A	8× 100M/1G/2.5G/5G/10G multigigabit + 16× 10M/100M/1G, all UPOE	4× 10G/1G SFP+	880 W	Ask for a quote
C9300L-48PF-4G-A	48× 10/100/1000 PoE+ (full PoE+ model)	4× 1G SFP	890 W	Ask for a quote
C9300L-48PF-4X-A	48× 10/100/1000 PoE+ (full PoE+ model)	4× 10G/1G SFP+	890 W	Ask for a quote
C9300L-48UXG-2Q-A	12× 100M/1G/2.5G/5G/10G multigigabit + 36× 10M/100M/1G, all UPOE	2× 40G QSFP	675 W	Ask for a quote
C9300L-48UXG-4X-A	12× 100M/1G/2.5G/5G/10G multigigabit + 36× 10M/100M/1G, all UPOE	4× 10G/1G SFP+	675 W	Ask for a quote

Compatible parts

Power supplies
PWR-C1-350WAC-P	350 W AC power supply	$334.24 · In stock
PWR-C1-715WAC-P	715 W AC power supply	$595.00 · In stock
PWR-C1-715WDC	715 W DC power supply	$375.00
PWR-C1-1100WAC-P	1100 W AC power supply	$650.00
PWR-C1-1900WAC-P	1900 W AC power supply	$1,314.00
Stack kits
C9300L-STACK-KIT	StackWise-320 stacking, 320 Gbps	$550.00 · In stock
C9300L-STACK-KIT2	StackWise-320 stacking, 320 Gbps	$659.53
Stack cables
STACK-T3-50CM	Data stack cable for the C9300L-STACK-KIT, 50 cm	Ask for a quote
STACK-T3A-50CM	Data stack cable for the C9300L-STACK-KIT2, 50 cm	Ask for a quote
STACK-T3-1M	Data stack cable for the C9300L-STACK-KIT, 1 m	$101.08
STACK-T3A-1M	Data stack cable for the C9300L-STACK-KIT2, 1 m	$101.08
STACK-T3-3M	Data stack cable for the C9300L-STACK-KIT, 3 m	$151.62
STACK-T3A-3M	Data stack cable for the C9300L-STACK-KIT2, 3 m	$151.62
Fans
FAN-T2=	Fan	Ask for a quote

Common questions

Is the C9300L-24P-4G-A-WS the same as a new C9300L-24P-4G-A?

Same hardware, ports and software tier; this unit is Certified Refurbished.

Does it need an uplink module?

No. Its four 1G SFP uplinks are built in.
