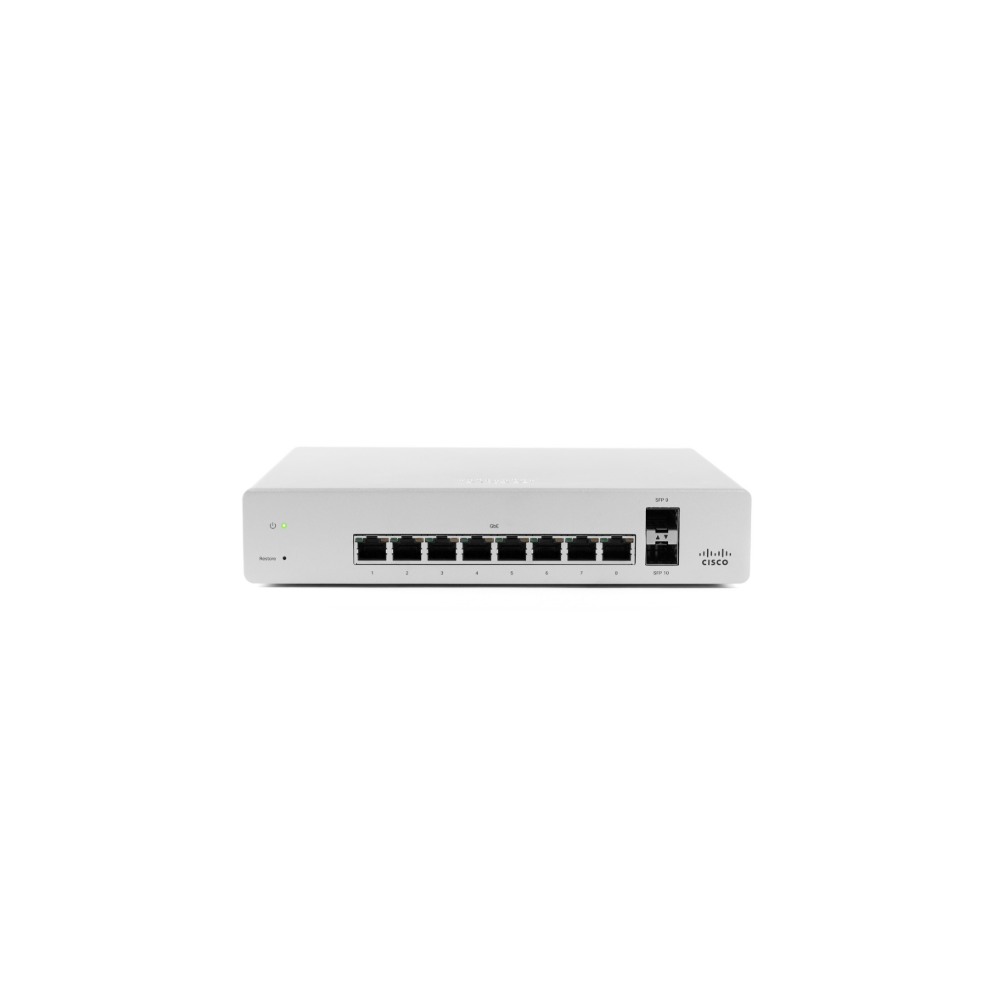

Meraki MS130-8P-HW MS130 Switch – 8x 1G, 2x 1G SFP

About the MS130-8P-HW

At 0.88 kg, the MS130-8P-HW gives eight RJ-45 ports at 10/100/1000 PoE+ (802.3at) at up to 30 W per port, from a 120 W budget. Two 1G SFP uplinks connect it upstream, and it sits on a desk or mounts on a wall.

It runs from an external power adapter at 54 V DC; the MA-PWR-150WAC-ADP is the adapter listed for it. Switching capacity is 20 Gbps, and draw is 8 W idle and 128 W at most. The MS130-8-HW has the same ports and uplinks without PoE, and the MS130-8P-I has the same ports, uplinks and 120 W budget.

What’s included

• MS130-8P-HW switch with eight PoE+ ports and two 1G SFP uplinks
• External power adapter

Sold separately

• 1G SFP modules for the uplinks, such as MA-SFP-1GB-SX, MA-SFP-1GB-LX10 or MA-SFP-1GB-TX

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

MS130-8P-HW specifications

Downlink ports	8× 10/100/1000 RJ45
Uplink ports	2× 1G SFP
PoE budget	120 W (802.3at PoE+)
Switching capacity	20 Gbps
Power supply	External power adapter
Form factor	Desktop or wall mount; 1.1 x 8.74 x 6in (2.8 x 22.2 x 15cm) (H × W × D); 1.94 lb (0.88 kg)
Management	Meraki Dashboard
PoE ports	802.3at; up to 30 W per port
Power input	54 V DC, 2.78 A
Power draw (idle / max)	8 W / 128 W

Compare Meraki MS130 models

Swipe the table sideways to see every column.

Model	Ports	Uplinks	PoE budget	Price
MS130-8P-HW this page	8× 10/100/1000 RJ45	2× 1G SFP	120 W	$725.00
MS130-48P-HW	48× 10/100/1000 RJ45	4× 1G SFP	740 W	$3,450.00 · In stock
MS130-24P-HW	24× 10/100/1000 RJ45	4× 1G SFP	370 W	$2,250.00 · In stock
MS130-12X-HW	8× 10/100/1000 RJ45 + 4× 100M/1G/2.5G multigigabit RJ45	2× 10G SFP+	240 W	$1,935.27
MS130-24-HW	24× 10/100/1000 RJ45	4× 1G SFP	None	$969.56
MS130-48X-HW	40× 10/100/1000 RJ45 + 8× 100M/1G/2.5G multigigabit RJ45	4× 10G SFP+	740 W	$2,835.22
MS130-8X-HW	6× 10/100/1000 RJ45 + 2× 100M/1G/2.5G multigigabit RJ45	2× 10G SFP+	120 W	$720.00
MS130-48-HW	48× 10/100/1000 RJ45	4× 1G SFP	None	$2,420.00 · In stock
MS130-24X-HW	18× 10/100/1000 RJ45 + 6× 100M/1G/2.5G multigigabit RJ45	4× 10G SFP+	370 W	$1,998.00
MS130-8-HW	8× 10/100/1000 RJ45	2× 1G SFP	None	$360.00
MS130-8P-I	8× 10/100/1000 RJ45	2× 1G SFP	120 W	$712.69
MS130R-8P	8× 10/100/1000 RJ45	2× 1G SFP	240 W	$1,813.62

Compatible parts

Power adapters
MA-PWR-150WAC-ADP	150 W power adapter	$171.32
Transceivers
MA-SFP-1GB-LX10	1 GbE SFP LX10 single-mode fiber module, 1000BASE-LX10, 10 km	$170.00
MA-SFP-1GB-SX	1 GbE SFP SX multimode fiber module, 1000BASE-SX	$252.69
MA-SFP-1GB-TX	1 GbE SFP RJ45 copper module, 1000BASE-T, 100 m	$219.49

Common questions

Is the MS130-8P-HW power supply internal?

No. It runs from an external power adapter at 54 V DC; the MA-PWR-150WAC-ADP fits it.

8P or 8?

Same eight 1G ports and two 1G SFP uplinks. The MS130-8P-HW adds PoE+ with a 120 W budget; the MS130-8-HW has no PoE.

How much power does the MS130-8P-HW draw?

8 W idle and 128 W at most.
