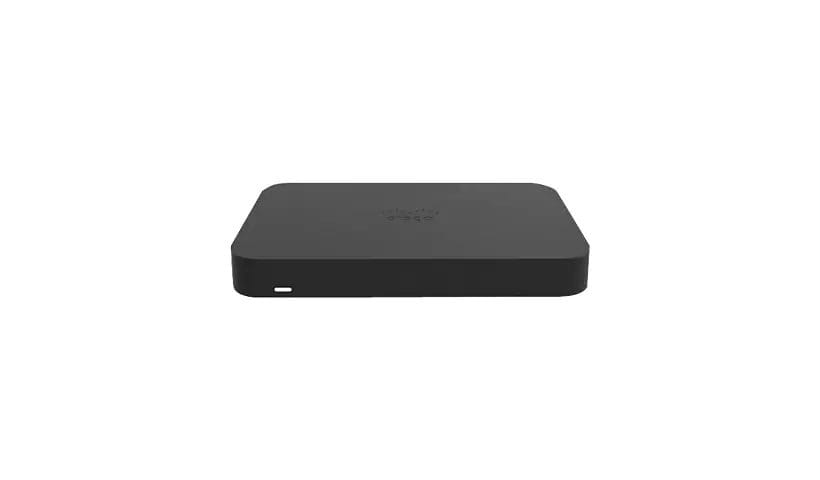

About the Z3-HW
The Z3-HW is a desktop Meraki gateway managed from the Meraki Dashboard. It handles 200 Mbps of stateful firewall traffic in NAT mode and 100 Mbps in passthrough mode, runs VPN at 75 Mbps and is sized for up to 5 LAN clients.
It has one 1G RJ45 WAN port and can add cellular through a third-party USB modem. On the LAN side are four 1G RJ45 ports, one of them PoE for a phone or similar small device. Wi-Fi is built in: 11ac Wave 2, 2×2 MU-MIMO, up to 1.3 Gbps.
It sits on a desk or mounts on a wall and runs from a 50 W, 54 V power adapter, with a maximum load of 25 W. The MA-PWR-50WAC adapter and the MA-STND-1 stand are in the compatible parts below.
What’s included
- Z3-HW appliance, managed from the Meraki Dashboard
Sold separately
- A third-party USB modem, if you want a cellular WAN link
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
Z3-HW specifications
| Throughput and sizing | Stateful firewall 200 Mbps (NAT mode); VPN 75 Mbps; up to 5 LAN clients |
|---|---|
| WAN ports | 1× GbE RJ45; cellular via 3rd-party USB modem |
| LAN ports | 4× GbE RJ45 (1× 802.3af PoE) |
| Cellular and Wi-Fi | 802.11ac Wave 2 Wi-Fi, 2x2 MU-MIMO, 1.3 Gbps |
| Power | 50 W power adapter (54 V); 25 W max load |
| Form factor | Desktop or wall mount; 6.83 x 4.41 x 1.04 in / 173.4 x 112 x 26.3 mm (H × D × W); 0.85 lb (0.386 kg) |
| Management | Meraki Dashboard |
| Max Stateful Firewall Throughput in Passthrough mode | 100 Mbps |
Compatible parts
| Power adapters | ||
|---|---|---|
| MA-PWR-50WAC | 50 W power adapter | $61.09 |
| Desk stands | ||
| MA-STND-1 | Desk stand | $27.50 |
Common questions
How many users is the Z3-HW sized for?
Up to 5 LAN clients, with 200 Mbps of firewall throughput in NAT mode.
Does the Z3-HW have Wi-Fi?
Yes. It has built-in 11ac Wave 2 Wi-Fi, 2×2 MU-MIMO, up to 1.3 Gbps.
Can the Z3-HW use a cellular connection?
Yes, through a third-party USB modem on top of its 1G RJ45 WAN port.
