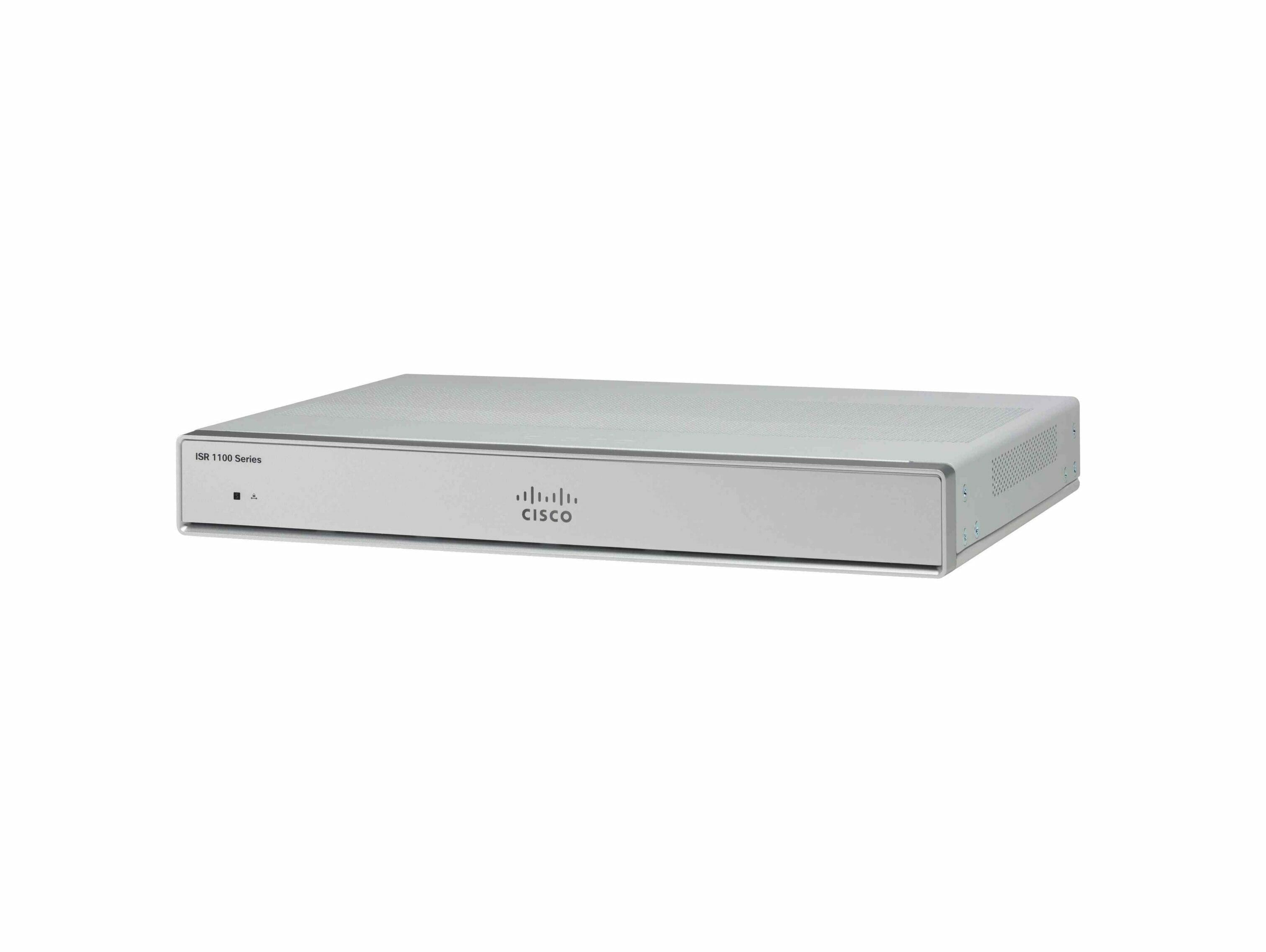

Cisco C1111X-8P – Router – 8-port switch – GigE – WAN ports: 2

Name: Cisco C1111X-8P Router: 8-Port GigE Switch with 2 WAN Ports
Brand: Cisco
SKU: C1111X-8P
Price: 600.00 USD
Availability: InStock

$600.00List price: $2,409.38

In stock (5) Ships today if ordered by 3 PM ET

ConditionNew

Warranty90 days

ShippingFree (US)

ReturnsRMA required · See policy

SKU: C1111X-8P Categories: Cisco, Routers

Description

The Cisco C1111X-8P is a compact and powerful router designed for small to medium-sized businesses and branch offices. It offers reliable and secure connectivity, advanced routing capabilities, and Power over Ethernet (PoE) support.

The C1111X-8P router provides eight Gigabit Ethernet ports, allowing for high-speed and reliable wired connectivity for network devices. These ports support data transfer rates of up to 1 Gbps, making them suitable for various network applications that require high bandwidth.

One of the key features of this router is its Power over Ethernet (PoE) capability. It can provide power to compatible devices such as IP phones, wireless access points, and surveillance cameras directly through the Ethernet cables. This eliminates the need for separate power supplies and simplifies the deployment of network devices.

The compact form factor of the router allows for easy deployment in various environments. It can be mounted on a desktop, wall-mounted, or installed in a rack, providing flexible installation options.

In summary, the Cisco C1111X-8P router is a reliable and feature-rich solution for small to medium-sized businesses and branch offices. Its combination of Gigabit Ethernet ports, Power over Ethernet support, advanced routing capabilities, and easy management options make it an ideal choice for organizations looking for secure and efficient network connectivity.

MAIN SPECIFICATIONS

Product Description	Cisco Integrated Services Router 1111 – router – desktop
Device Type	Router – 8-port switch (integrated)
Enclosure Type	Desktop
WAN Ports Qty	2
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Performance	Encryption throughput: 250 Mbps
Network / Transport Protocol	IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol	SNMP, RMON, CLI, TR-069
Features	Power over Ethernet (PoE), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), DNA support
Compliant Standards	IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r
Power	AC 120/230 V (50 – 60 Hz)
Dimensions (WxDxH)	12.7 in x 9.1 in x 1.7 in
Weight	5.71 lbs

EXTENDED SPECIFICATIONS

General

Device Type	Router – 8-port switch (integrated)
Enclosure Type	Desktop
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Performance	Encryption throughput: 250 Mbps
Network / Transport Protocol	IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol	SNMP, RMON, CLI, TR-069
Encryption Algorithm	DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA
Authentication Method	RADIUS
Features	Power over Ethernet (PoE), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), DNA support
Compliant Standards	IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
RAM	8 GB
Flash Memory	8 GB
Status Indicators	Status

Expansion / Connectivity

Interfaces

WAN: 1 x 1000Base-T/1000Base-X – RJ-45/SFP ¦ WAN: 1 x 1000Base-T – RJ-45 ¦ LAN: 4 x 1000Base-T – RJ-45 ¦ LAN: 2 x 1000Base-T (PoE+) – RJ-45 ¦ LAN: 2 x 1000Base-T (PoE) – RJ-45 ¦ USB 3.0: 1 x console

Power
