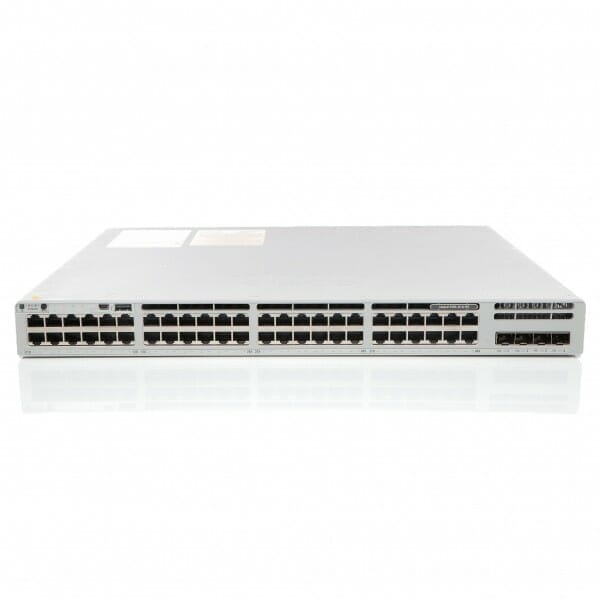

Cisco C9300L-48T-4X-A – Excess – Switch – L3 – 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) – rack-mountable
Original price was: $6,701.00.$2,333.20Current price is: $2,333.20.
On order Ask for price and lead time
Tell us how many you need and we'll reply with current price and lead time. Or call (984) 225-1600.
The Cisco C9300L-48T-4X-A is a high-performance, managed-layer 3 switch that is ideal for use in enterprise networks. It is designed to provide maximum uptime, with its redundant power supplies, and its front-to-back cooling design. It has 48 Gigabit Ethernet ports and 4 10 Gigabit Ethernet ports. It also has advanced features such as network segmentation, Quality of Service (QoS), and Multicast support. It has an integrated security threat detection system that helps protect your network from malicious attacks. It also has a simple, intuitive user interface for easy setup and configuration. The C9300L-48T-4X-A is an ideal solution for enterprise networks that require reliability, scalability, and performance.
MAIN SPECIFICATIONS
| Product Description | Cisco Catalyst 9300L – Network Advantage – switch – 48 ports – rack-mountable |
| Device Type | Switch – 48 ports – L3 – stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) |
| Performance | Switching capacity with stacking: 496 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps ¦ Forwarding rate with stacking: 369.05 Mpps |
| Capacity | IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ Routed ports: 416 ¦ VLANs supported: 4094 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG |
| Features | Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz |
| Power | AC 120/230 V (50 – 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.5 in x 1.7 in x 16.1 in |
| Weight | 15.43 lbs |
